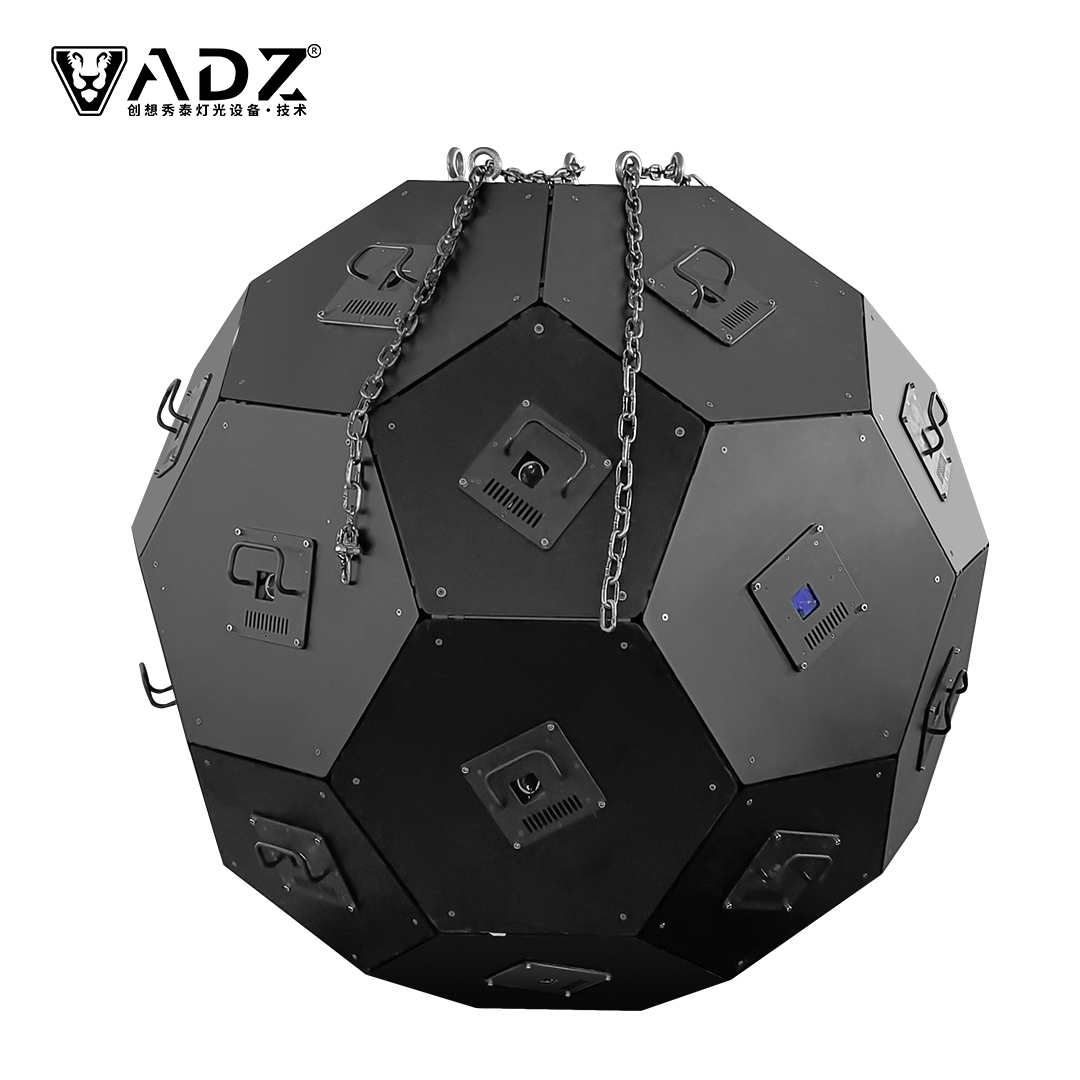

ADZ-B2

ADZ-激光球丨laser ball

1.RGB激光器全采用高稳定性长寿命的半导体绿激光,激光二极管通电直接出
激光(类似发光二极管),可在-20 °~40 ° 2.激光器采用模拟调制技术,可以线性控制激光亮度,效果更柔柔和亮丽。
3.完全防尘设计,光路免清洁维护;
4. 内置丁达尔及光束效果图案。具频闪、旋转调节功能。
◆ 控制模式:DMX512
◆ DMX功能:248通道控制.

1.RGB lasers all use highly stable and long-life semiconductor green lasers. The laser diodes emit laser light directly when powered on (similar to light-emitting diodes), which can be adjusted between -20° and 40°.
2.The laser uses analog modulation technology, which can linearly control the laser brightness, making the effect softer and brighter.
3.Completely dustproof design, optical path cleaning and maintenance-free;
4.Built-in Tyndall and beam effect patterns. With strobe and rotation adjustment functions.
◆Control mode: DMX512
◆DMX function: 248 channel control.
详情 | Product details
型号(model) ADZ-B2 类型(type) 激光灯 Laser light
规格 品牌(brand) ADZ
增值服务(value-added services) 初步3D模拟方案--设备成本估算--灯光秀编程设计--设备安装调试--现场演出技术支持(Preliminary 3D simulation plan - Equipment cost estimation - Light show programming design - Equipment installation and debugging - On site performance technical support) 波长范围(nm) R:638nm G:520nm  B:450nm
输出光功率(W) 3W*31(R:750mw  G:750mw  B:1500mw) 防护级别(Protection Class) IP25
工作环境(Operating Environment) 室外室内,-25°C--40°C(Indoor and outdoor, -20°C to 40°C) 控制模式(Control Modes) DMX512
电源(Power Supply) 100~250V,50/60HZ 额定功率(Rated Power) <3000W
机器尺寸(Machine Dimensions) 1.6M in diameter 机器重量(Machine Weight) 150KG
